Miniaturization of Moisture Sensor Solution​

Miniaturization of Moisture Sensor Solution for Technology Solutions Provider in US

Miniaturization of Moisture Sensor Solution Banner

Overview

The client is a US-based leader providing high technology instrumentation solutions for a wide range of applications. They wanted to improve the design to reduce the form factor and the assembly time of the existing moisture sensor​. ACL Digital developed moisture sensor prototype with IP-65 compliance.

Download Case Study








    Challenges

    Absence of next-gen sensors aligned with the latest dimension

    Absence of prototype with IP-65 compliance

    Solution

    • Development of next-generation sensor with reduced form factor as per the new dimension requirements
    • Hardware design and development including schematics entry, PCB layout, Gerber release for final design
    • Hardware prototyping and EDVT including PCB fabrication and assembly, EDVT testing and validation with capacitance box by simulating different level of wetness using capacitance box and calibrate the sensor
    • Mechanical enclosure drawing modification and prototyping with SS material, CNC tooling based mechanical proto development, IP65 testing
    • RoHS, CE, and ATEX – Zone 2 pre-compliance for Hazloc compliance

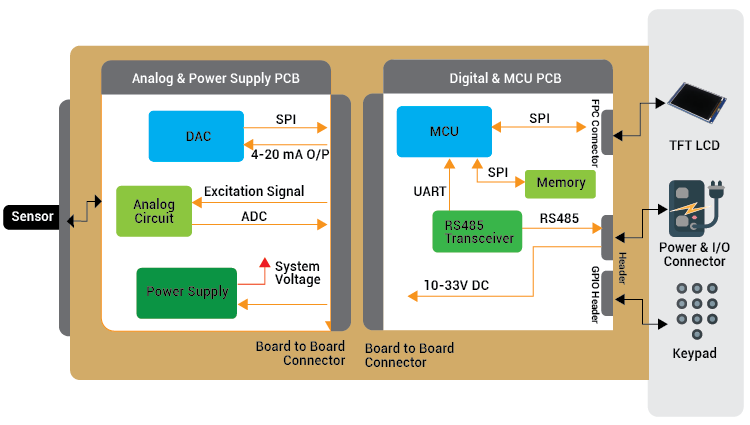

    Miniaturized Moisture Sensor Solution Design

    Outcomes

    Outcomes Miniaturization of Moisture Sensor Solution​
